Effective Substation Grounding

Substation grounding is a critical aspect of electrical safety, and a well-designed grounding system can prevent electrical shocks and ensure the safe operation of equipment.

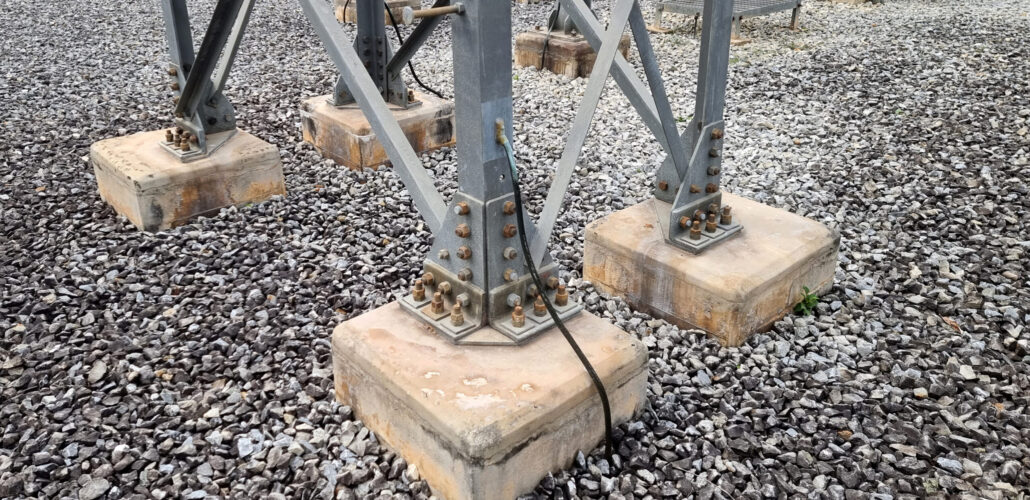

Image for illustration purposes.

The Grid System

A grounding grid is a network of interconnected electrodes that provides a safe path to ground for fault currents. The grounding system is designed to control surface potential gradients and ensure that all surfaces within the substation have the same potential as the equipment and metallic structures.

Grounding Grid Design Criteria

The design of a grounding grid involves several criteria, including the electrical response of the electrodes, the potential gradients in the vicinity of the substation, and the risk of electrical shock to people and animals. The article highlights the importance of considering these factors when designing a grounding grid.

Grounding a Substation on Bedrock

The article also discusses the challenges of grounding a substation located on bedrock. It notes that soil resistivity measurements are essential for designing an effective grounding system and that a good grounding design starts with soil resistivity data gathered from on-site testing.

Key Takeaways

  • A well-designed grounding system is critical for electrical safety in substations.
  • A grounding grid is a network of interconnected electrodes that provides a safe path to ground for fault currents.
  • The design of a grounding grid involves several criteria, including electrical response, potential gradients, and risk of electrical shock.
  • Soil resistivity measurements are essential for designing an effective grounding system on bedrock.
