    Transformer Testing Course – E-LESSON #2 – Measurement of voltage ratio and check of phase displacement

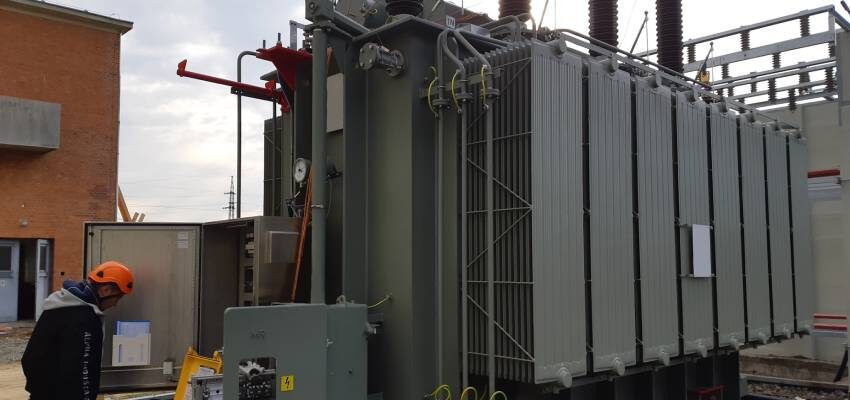

    Illustration - 850 x 400
    Course: Basic level

    Hosted by: Balazs Sztari / Free

    This lesson covers the measurement of voltage ratio and phase displacement on power transformers. It explains the importance of these tests, which are mandatory according to industry standards. The lesson discusses different methods for measuring voltage ratio, including the voltmeter, bridge, and ratio meter techniques. It also covers how to check polarity and phase displacement, emphasizing the need to properly prepare the transformer before testing. The lesson highlights the evaluation of test results, including the acceptable deviation limits specified in standards. It compares the requirements between IEC and IEEE standards, noting differences in terminology and criteria. The lesson concludes by mentioning that additional questions will be answered offline or in future lessons.



    Unauthorized message

    Subscribe to this course!

    If you are already a subscriber of the Transformers Academy or Transformers Magazine, please, Login with your credentials.

    While the first e-lesson offered some basic information about standards, procedures and evaluation methods of factory acceptance testing of power transformers, in the second e-lesson you will have the opportunity to learn about definitions, test circuit requirements, procedures and results evaluation of voltage ratio and phase displacement measurement on transformers.

    Keywords: power transformers, transformer testing, voltage  ratio measurement, turns ratio measurement, check of phase displacement
